Product Description

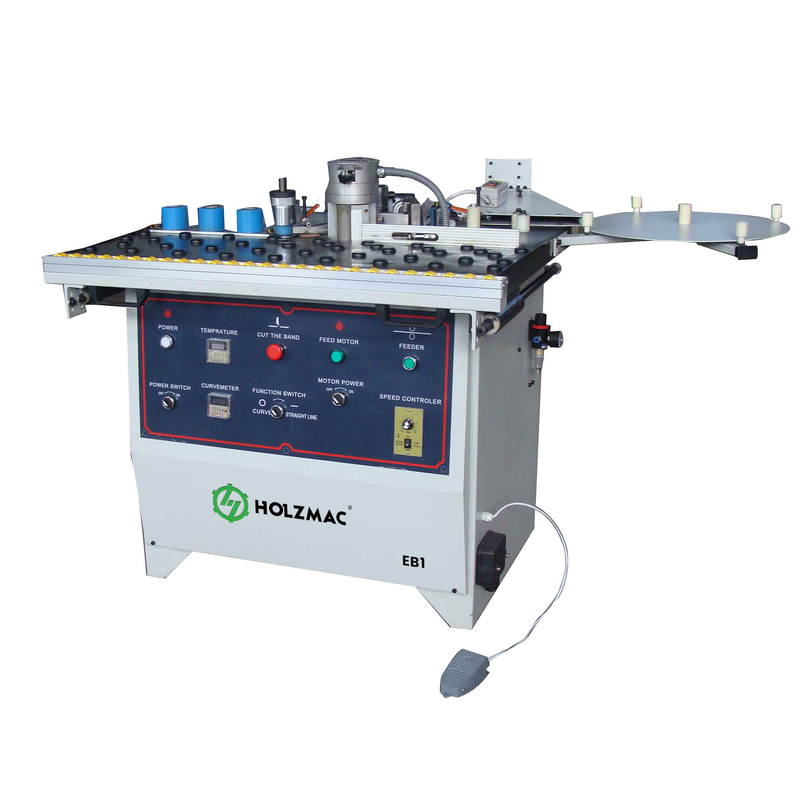

Model	EB 1
Thickness of banding	0.4-3mm
Width of banding	12-45mm
Thickness of Workpiece	10-40mm
Heating power	1.8kW
Motor power	0.18kW
Feeding speed	1-6m/min
Air pressure	0.4-0.5Mpa
Total power consumption	2.0kW
Overall dimensions(l×w×h) mm	950×750×1000
Package size(l×w×h) mm	1050×830×1100
N.W	185kg
Box weight	48kg
G.W	233kg
Shape of workpiece	straight, curved
Mini radius of banding	20mm

Main Use

Applicable to all cabinets closets, office furniture, wooden doors edge laminating different materials decorative edge banding strip.

Functions can be selected from manual curved straight line edge banding, automatic straight line edge banding: optional functions are --- pre-milling, edge banding, end cutting, trimming, corner rounding, scraping, buffering and so on.

Conventional EVA hot melt adhesive can be used, PUR adhesive machine can also be added with PUR adhesive, as well as the most advanced laser edge banding device.

Can be equipped with side drilling system to drill installation holes after edge banding, reducing the use of separate side hole equipment and the use of manual labor, more effective to improve work efficiency.
