Product Description

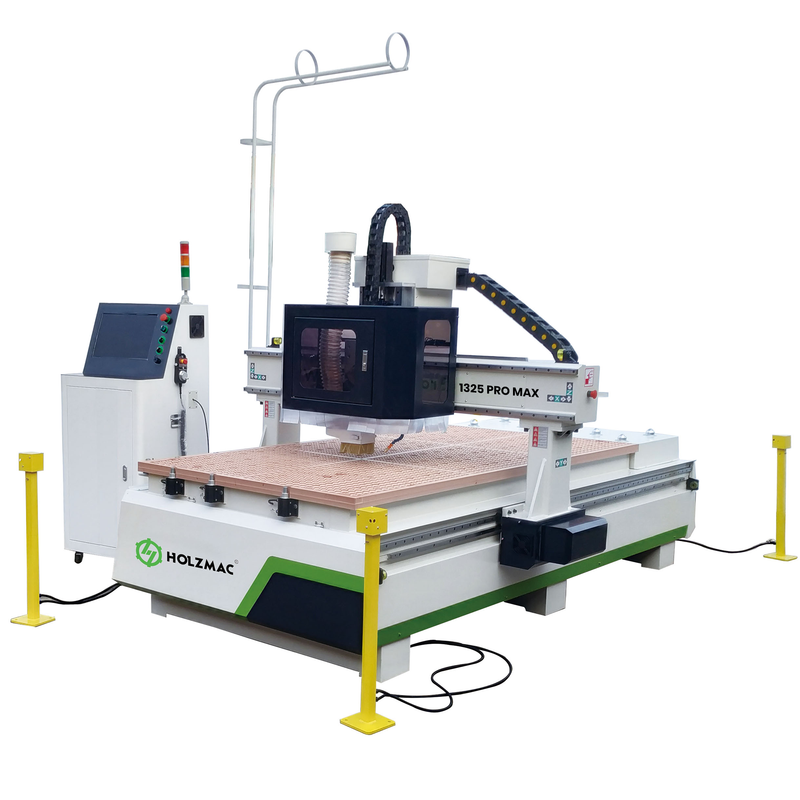

Model | 1325 Pro MAX |
Working table size | 1300*2500*250mm |
Transmission | Gear & ball screw |
Z axis movement | 25mm ball screw |
X axis & Y axis movement | CSK 30mm linear guide |
Electrical | Schneider |
Spindle | 6KW 24000rpm air cooling |
Drive X & Y axis | Delta 1000w servo motor |
Drive Z axis | Delta 750W servo motor with break |
Inverter | 7.5KW Delta Brand |
Table | 6 zone vacuum table |
Vacuum pump | 7.5 KW oilless |
Control system | Weihong NC 60A |
Tool length sensor | Include |
Position cylinder | X axis 3 pcs, Y axis 4 pcs |
Reducer | Gear box with shimpo reducer |
Sensor Safety Barrier | Include |
Vacuum pump star-delta start | Include |
Machine Size | 3100*2300*2500mm |
Machine Weight | 2000 KGS |
Main function
The 1325 Pro MAX CNC Router is a high-power woodworking solution, designed to deliver exceptional performance and precision in demanding manufacturing environments. This advanced machine is ideal for professional woodworkers, furniture makers, and industrial manufacturers who require robust and reliable equipment.
Spindle:
Equipped with a powerful 6KW or 9KW spindle featuring an automatic tool changer, the 1325 Pro MAX offers the necessary power to handle a wide range of materials.
The speed range of 5000-24000 RPM ensures versatility, allowing for both fine detailing and high-speed cutting, making it suitable for various applications.
Automatic Tool Changer System:
Available with 8, 12, or 16 positions, the linear or disk automatic tool changer significantly enhances productivity by minimizing downtime between tool changes.
This feature allows for seamless transitions between different tools, enabling efficient and continuous operation.
Multi-Zone Vacuum Adsorption Table:
The multi-zone vacuum adsorption table ensures that materials are securely held in place during processing, reducing movement and improving accuracy.
An optional double-stage air pump or dry vacuum pump can be added to further enhance the holding power, ensuring that even the most challenging materials are firmly fixed.
Control System:
The industrial-grade Weihong controller is adopted to ensure precision and reliability.
This controller is designed to handle complex tasks and provide consistent performance, making it ideal for high-demand environments.
Drive:
The servo motor drive is available from various brands, offering the flexibility to choose the best option for your specific needs.
High-quality servo motors ensure smooth and accurate motion, contributing to the overall efficiency and quality of the finished product.
The 1325 Pro MAX CNC Router is a versatile and high-performance solution, combining powerful cutting capabilities, advanced automation, and precise control. It is the perfect choice for professionals looking to increase production capacity and improve the quality of their work. Whether you're working on intricate designs or large-scale projects, this machine is a valuable addition to any workshop.
