Rotary tool Changer CNC Router Machine
2130 PRO ATC
main technical parameters and brand
Working table size | 2100*3000*200mm |
Transmission | Gear & ball screw |
Z axis movement | 25mm ball screw |
X axis & Y axis movement | CSK 30mm linear guide |
Electrical | Schneider |
Spindle | 12KW 24000rpm air cooling (CC) |
Tool Holder type and quantity | 12 Pcs HSK 63F |
Boring Head | 5+4 |
Auto loading & Unloading | Include |
Drive X & Y axis | Delta 1500w servo motor |
Drive Z axis | Delta 1000W servo motor with break |
Inverter | 15KW Delta Brand |
Table | 6 zone vacuum table |
Vacuum pump | Two pcs 7.5 KW air cooling |
Control system | Weihong NC 60A |
Tool length sensor | Include |
Position cylinder | X axis 3 pcs, Y axis 4 pcs |
Reducer | Gear box with shimpo reducer |
Sensor Safety Barrier | Include |
Vacuum pump star-delta start | Include |
Wooden case packing | Not include |
Machine Size | 3000*4000*2300mm |
Machine Weight | 2800 KGS |
Functional role
Part Name | Reference Picture | Description of components |

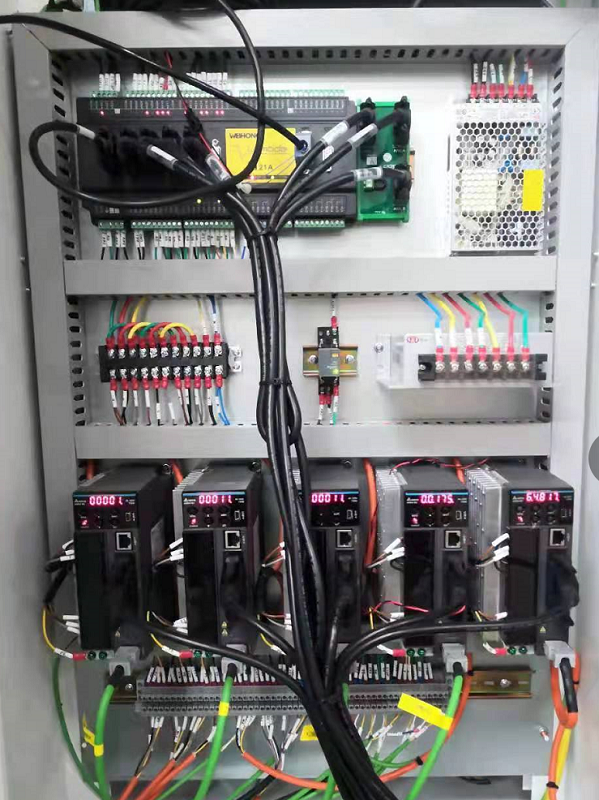

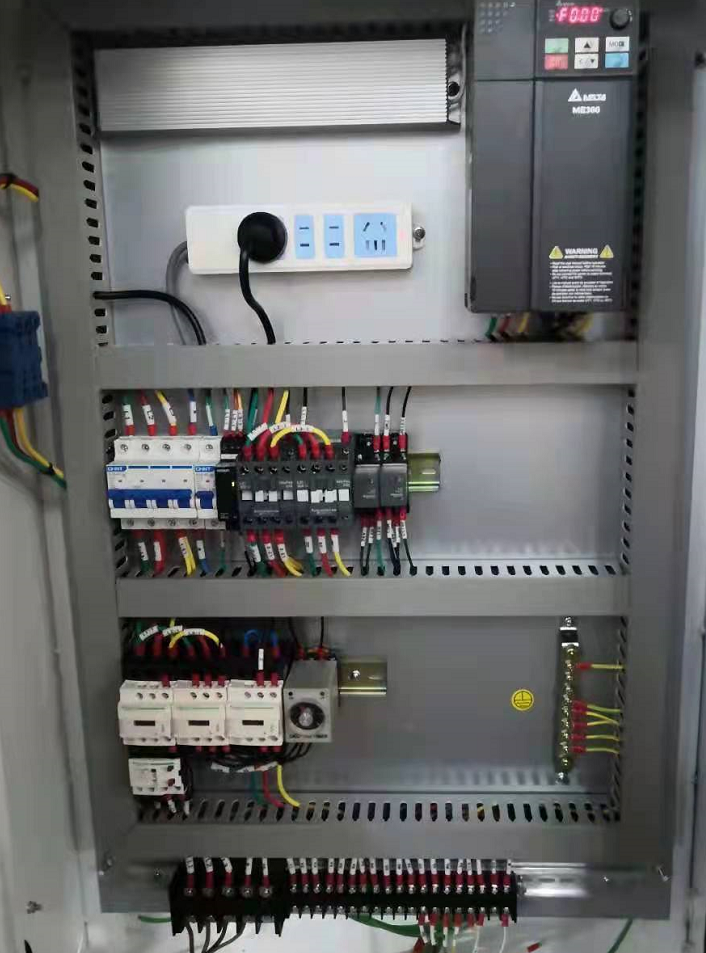

Electrical and electric boxes |
| Brand: Schneider, France According to the European CE standards, the whole machine production, wiring, all line number identification is clear, the line is clear, random with circuit diagram, machine failure, troubleshooting inspection line is simple and convenient. |

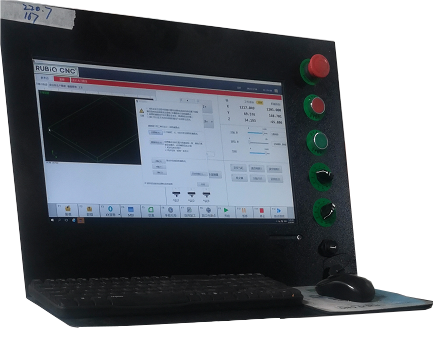

Weihong Control system with PC and keyboard |
| 1) Easy operation, safety & reliable. |
Big Spindle cover |
| Complete protect the spindle and ensure working safety. |
Heavy duty Machine body |
| Thick steel and pipe welding with heat treatment Machining properly with powder painting |

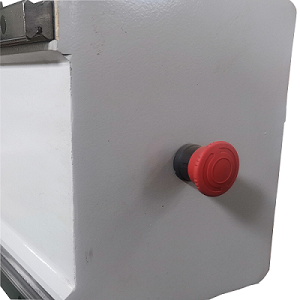

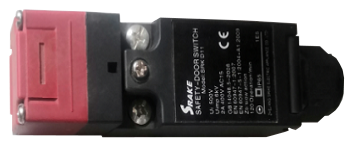

Emergency stop on gantry side & Power off limit switch Also sensor barrier keep worker away machine during working |
| Protect machine and operator in operation, if any urgent condition or wrong operation can stop machine running immediately |
Vacuum table with AL T-slot | | vacuum table with two vacuum pump to ensure big work piece holding properly, six zones and T-slot in consecrate of small work piece holding. |

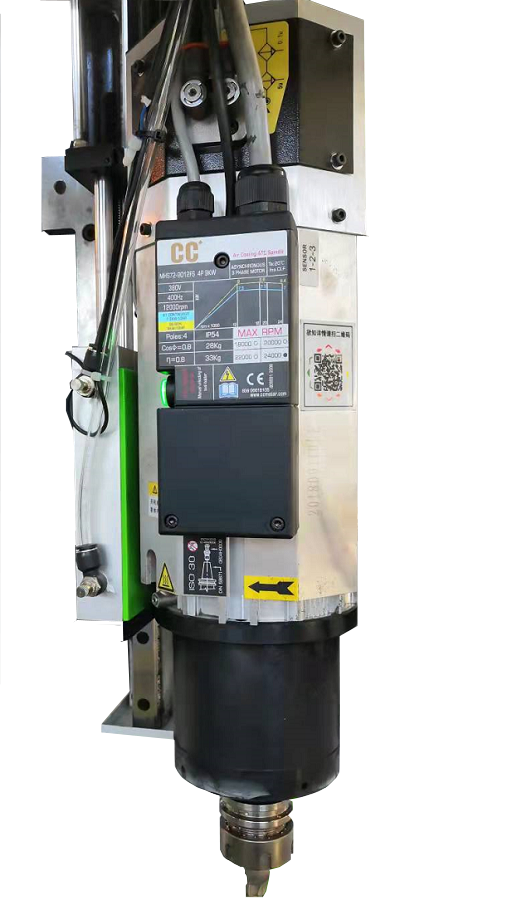

Spindle with air blower |
| 12 kw 24000rpm tool changer spindle with air blower cleaning |

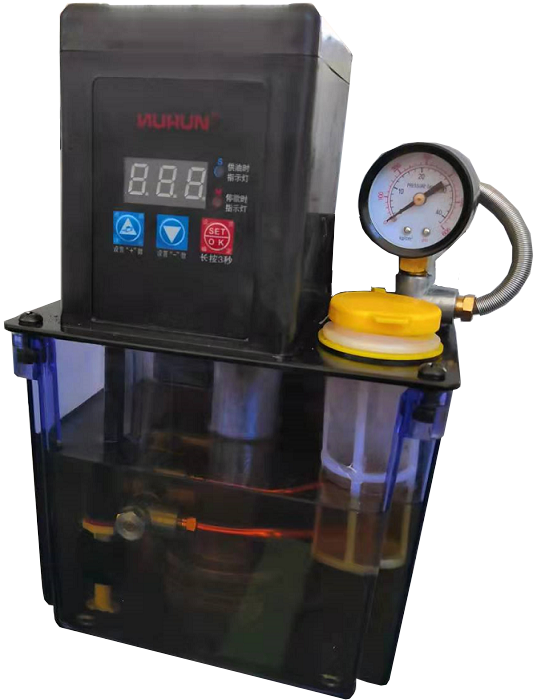

Lubrication system |
| Automatic lubricate pump ensure lubricate on time and properly |
Auto loading table |
| |
Unloading table |
| |
5+4 Taiwan Brand boring head |
| |

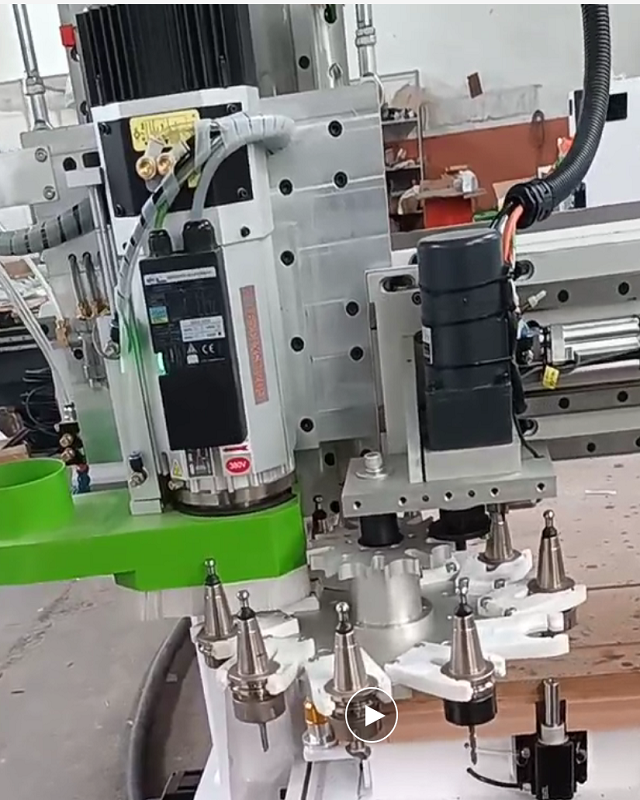

Rotary tool changer |
| Moving along with spindle, more fast changing tools |
Main function
The 2130 Pro ATC Advanced CNC Router Nesting Machine is a high-performance solution designed for high-volume production in professional woodworking. It combines powerful cutting capabilities, advanced automation, and precision control, making it an ideal choice for cabinets, closets, office furniture, and other large-scale woodworking projects. This machine is engineered to deliver exceptional efficiency, accuracy, and versatility.
High-Power Spindle:
Equipped with a 6KW or 9KW power spindle with an automatic tool changer (ATC), the 2130 Pro ATC provides robust cutting performance.
The spindle speed range of 5000-24000 RPM ensures that the machine can handle a wide variety of materials and cutting tasks with ease.
Automatic Tool Changer System:
The 8, 12, or 16 positions linear or disk automatic tool changer allows for seamless and rapid tool changes, significantly enhancing productivity and reducing downtime.
This system enables the machine to switch between different tools automatically, ensuring that the right tool is always in use for each specific task.
Multi-Zone Vacuum Adsorption Table:
The multi-zone vacuum adsorption table ensures that materials are securely held in place during cutting, providing stability and preventing movement.
An optional double-stage air pump or dry vacuum pump can be added to further enhance the fixing of materials, ensuring consistent and precise cuts.
Industrial-Grade Control System:
The 2130 Pro ATC adopts an industrial-grade Weihong controller, known for its reliability and precision.
This advanced control system ensures smooth and accurate operation, allowing for complex and detailed cutting patterns with high repeatability.
Servo Motor Drive:
The machine features a servo motor drive from various reputable brands, which can be selected based on your specific requirements.
The servo motors provide precise and responsive motion control, ensuring that the machine operates with high accuracy and minimal vibration.
High-Precision Cutting:
The high-power spindle and advanced control system ensure that every cut is precise and clean, delivering high-quality results.
Enhanced Productivity:
The automatic tool changer system and multi-zone vacuum adsorption table work together to minimize setup time and maximize throughput, making the 2130 Pro ATC highly efficient for high-volume production.
Versatility:
With the ability to handle a wide range of materials and cutting tasks, the 2130 Pro ATC is versatile enough to meet the demands of various woodworking applications.
Reliability:
The industrial-grade Weihong controller and reliable servo motor drive ensure that the machine operates consistently and reliably, even under heavy use.
User-Friendly Design:
The intuitive control interface and ergonomic design make the 2130 Pro ATC easy to operate and maintain, even for users with varying levels of experience.
The 2130 Pro ATC Advanced CNC Router Nesting Machine is a high-performance and versatile solution, combining powerful cutting capabilities, advanced automation, and precision control. It is the perfect choice for professionals looking to achieve high-precision and efficient production in their woodworking projects, whether it's for cabinets, closets, office furniture, or other applications.
