Machine Details
![]() |
Specification

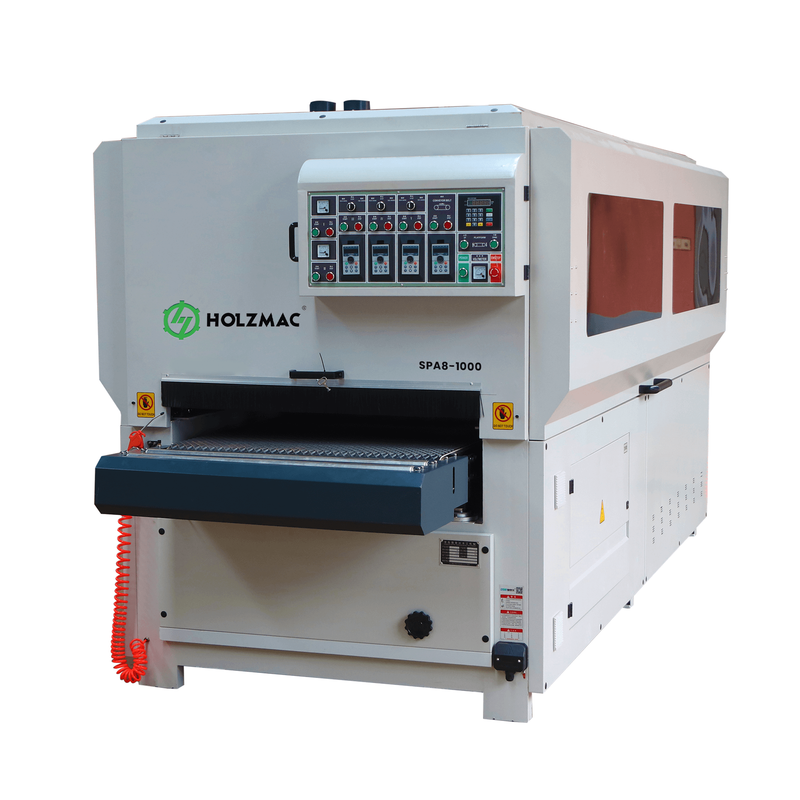

Model | SPA8-1000 |
Maximum working width | 1000mm |
Working thickness | 8—160mm |
Working length | ≥430mm |
Roller speed | Inverter |
Feeding Speed | 5—20m/min |
Roller diameter | 300 mm |
Horizontal motor power | 1.5kw*2 grade 6 |
Feeding motor | 1.5kw |
Table raising motor | 0.55kw-RV40 |
Disc motor power | 1.5kw grade 6 |
Disc Vibration motor | 0.55kw-RV40 |
Vertical motor power | 1.5kw*2 grade 6 |
Vertical Vibration motor | 0.55kw-RV40 |
Dimension | 3900*1800*1850mm |
Weight | 2500kg |
Details
![]() | ![]() |
![]() | ![]() |
