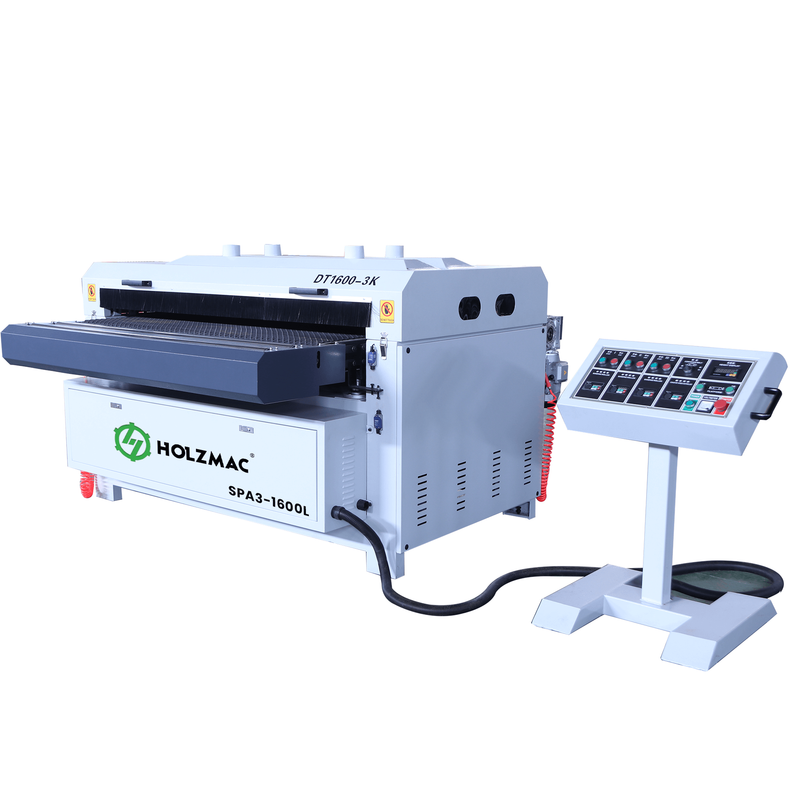

SPA3-1600L - Large Format Sanding & Polishing Machine

Wide Processing Range：Supports workpieces up to 1600mm wide, 0-100mm thick, and ≥330mm long
Flexible & Efficient Feeding：Feeding speed: 5-20m/min (frequency-adjustable); 200mm large-diameter rollers enable stable conveying of workpieces with different materials and thicknesses
Powerful Total Power：Equipped with 3 sets of 11kW horizontal motors
Easy Operation：Built-in 0.55kW table lifting motor for convenient adjustment
Availability:
Quantity:
Inquire Add to Basket

Specification

ModelSPA3-1600L
Maximum working width1600mm
Working thickness0—100mm
Working length≥330mm
Roller speedInverter
Feeding Speed5—20m/min
Roller diameter200 mm
Horizontal motor power11kw*3
Feeding motor1.5kw
Table raising motor0.55kw-RV40
Dimension2150*1800*1380mm
Weight1500kg


Details
