Product Description

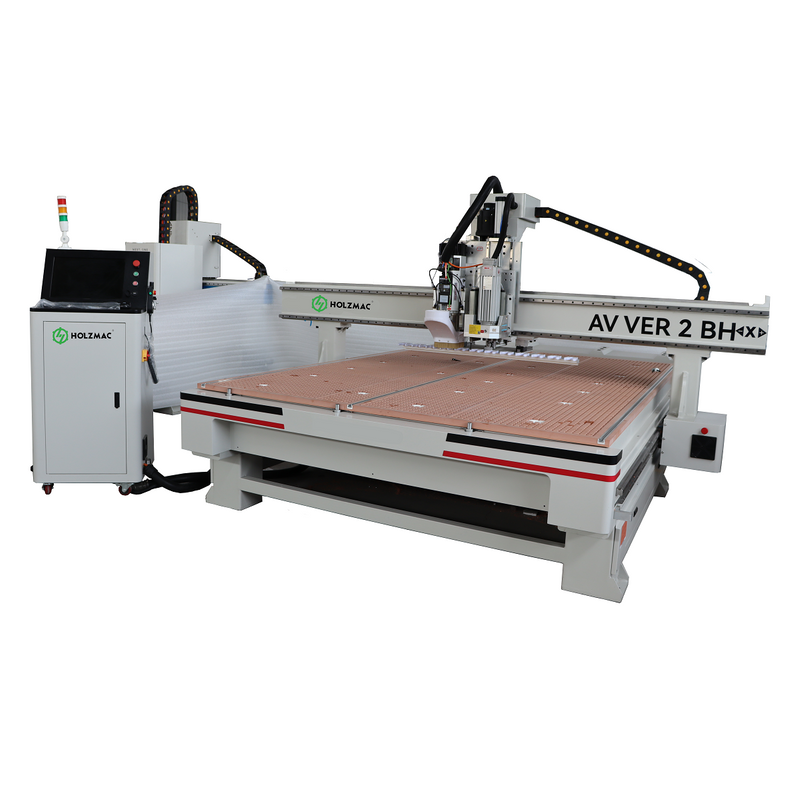

| Model | AV VER 2 BH |
|---|---|
| Working table size | 2100*3050*200mm |
| Transmission | Gear & ball screw |
| Z axis movement | 25mm linear guide & ball screw |
| X axis movement | 25mm linear guide |
| Y axis movement | 30mm linear guide |
| Electrical | Chint Brand |
| Spindle | 9KW 24000rpm air cooling |
| Boring head | 5+4 vertical bits |
| Drive X & Y axis & Z axis | Weihong 1KW servo motor |
| Inverter | 11KW Fulin Brand |
| Table | vacuum table (6 zones) |
| Vacuum pump | 7.5KW 250cbm |
| Control system | Weihong NC 60A |
| Tool length sensor | Include |
| Position cylinder | X axis 3 pcs, Y axis 4 pcs |
| Machine Size | 4100*2300*2400mm |
| Machine Weight | 2300 KGS |
Functional Role
| Part Name | Reference Picture | Description of components |
|---|---|---|
| Electrical and electric boxes |
| Brand: Schneider, France According to the European CE standards, the whole machine production, wiring, all line number identification is clear, the line is clear, random with circuit diagram, machine failure, troubleshooting inspection line is simple and convenient. |
| Weihong Control system with PC and keyboard |
| A user-friendly Weihong Control system integrated with a dedicated PC and keyboard, enabling intuitive operation, program editing, and real-time processing control for woodworking CNC machines. |

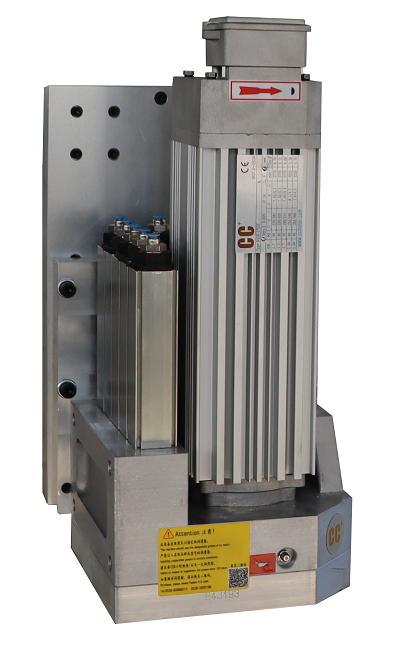

| Multi-spindle Drilling Head |
| Integrated with multiple vertical boring bits for simultaneous or sequential drilling operations. It works with the machine’s servo drive and control system to achieve high-precision hole drilling, counterboring, or threading on woodwork (e.g., furniture, cabinetry). For models like the AV VER 2 BH, the 5+4 multi-spindle drilling head enables integrated drilling and cutting, significantly boosting processing efficiency and versatility. |
| Spindle with air blower |
| Equipped with a 9KW air-cooled spindle, it boasts a maximum speed of 24,000rpm, delivering abundant cutting force and efficient heat dissipation. This makes it ideal for various heavy-load woodworking applications such as carving, cutting, and grooving. |
| Big Spindle cover |
| It protects operators from contact with high-speed rotating components to ensure safety, and prevents wood chips and dust generated during cutting from entering the spindle interior, thereby extending the equipment's service life. |
| Heavy duty Machine body |
| Our CNC router features thick steel and pipe welding with heat treatment, Machining properly with powder painting, delivering exceptional structural rigidity and long service life. |
| Vacuum table with AL T-slot |
| Vacuum table with AL T-slot, which firmly fixes wood workpieces and supports flexible positioning. |

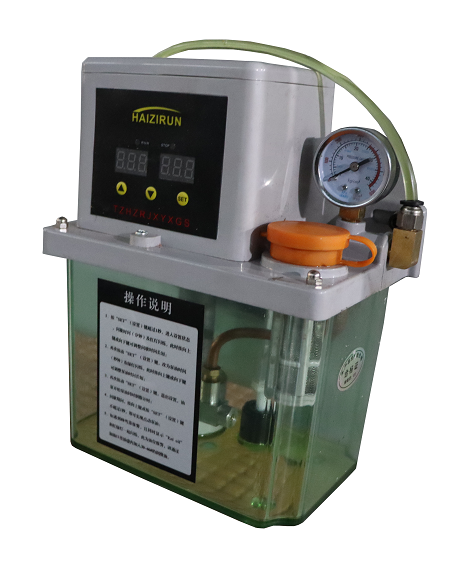

| Lubrication system |
| Equipped with a 7.5KW high-power vacuum pump (250 m³/h), it delivers strong adsorption force for the vacuum table.Automatic lubricate pump ensure lubricate on time and properly. |
| Linear tool changer |
| The AV VER 2 is equipped with a linear tool changer featuring 12 tool stations. Boasting a simple structure, easy maintenance, and compact footprint, the tool changer arranges tools in a straight line. During tool switching, the tool rack is driven by an air cylinder or servo motor for translational positioning, ensuring direct and efficient tool change operations. |
Main Function
The Model AV VER 2 BH is Boasting a 9KW air-cooled spindle paired with Weihong servo drives, it delivers powerful and responsive performance. The drilling head is equipped with 5 main tool positions + 4 auxiliary tool positions, enabling simultaneous or alternate completion of multi-process drilling operations. It significantly improves processing efficiency and flexibly adapts to drilling needs in woodworking.It is Equipped with the Weihong NC 60A control system and intelligent sensors, can achieves top-tier precision and efficiency simultaneously.
High-precision transmission system
Gear & ball screw paired with 25-30mm linear guides (Z-axis with dual ball screw + linear guide) for stable, accurate motion.
Powerful performance
9KW 24000rpm air-cooled spindle + 11KW Fulin inverter, delivering exceptional cutting efficiency and speed.
Multi-functional boring capability
5+4 vertical boring bits for integrated drilling and cutting tasks, enhancing processing versatility.
Premium drive system
Weihong 1KW servo motors for X/Y/Z axes, ensuring precise positioning and responsive operation.
Reliable workholding
6-zone vacuum table + 7.5KW 250cbm vacuum pump, providing strong, uniform adsorption for secure workpiece fixation.
Advanced control & calibration
Weihong NC 60A control system for intuitive operation, plus integrated tool length sensor and 7 position cylinders (3X+4Y) for precise positioning.
Durable industrial build
Chint electrical components and 2300KG weight, ensuring long-term stability and reliability in heavy-duty applications.
Maximized productivity
High-speed spindle, servo-driven precision, and integrated boring function reduce processing steps and shorten cycle times.
Superior processing quality
Precision transmission, servo motors, and automatic calibration deliver consistent, high-accuracy results for complex woodworking (e.g., furniture, cabinetry, joinery).
Enhanced versatility
Combined cutting/drilling capabilities and large worktable adapt to diverse tasks, eliminating the need for multiple machines.
Reduced operational hassle
Intuitive Weihong NC 60A control system and secure workholding minimize setup time and operator error.
Lower total cost of ownership
Durable brand components (Chint, Fulin, Weihong) and robust construction reduce maintenance frequency and replacement costs.
Long-term investment value
Heavy-duty 2300KG frame and industrial-grade components ensure stable performance and extended service life in high-volume production environments.
