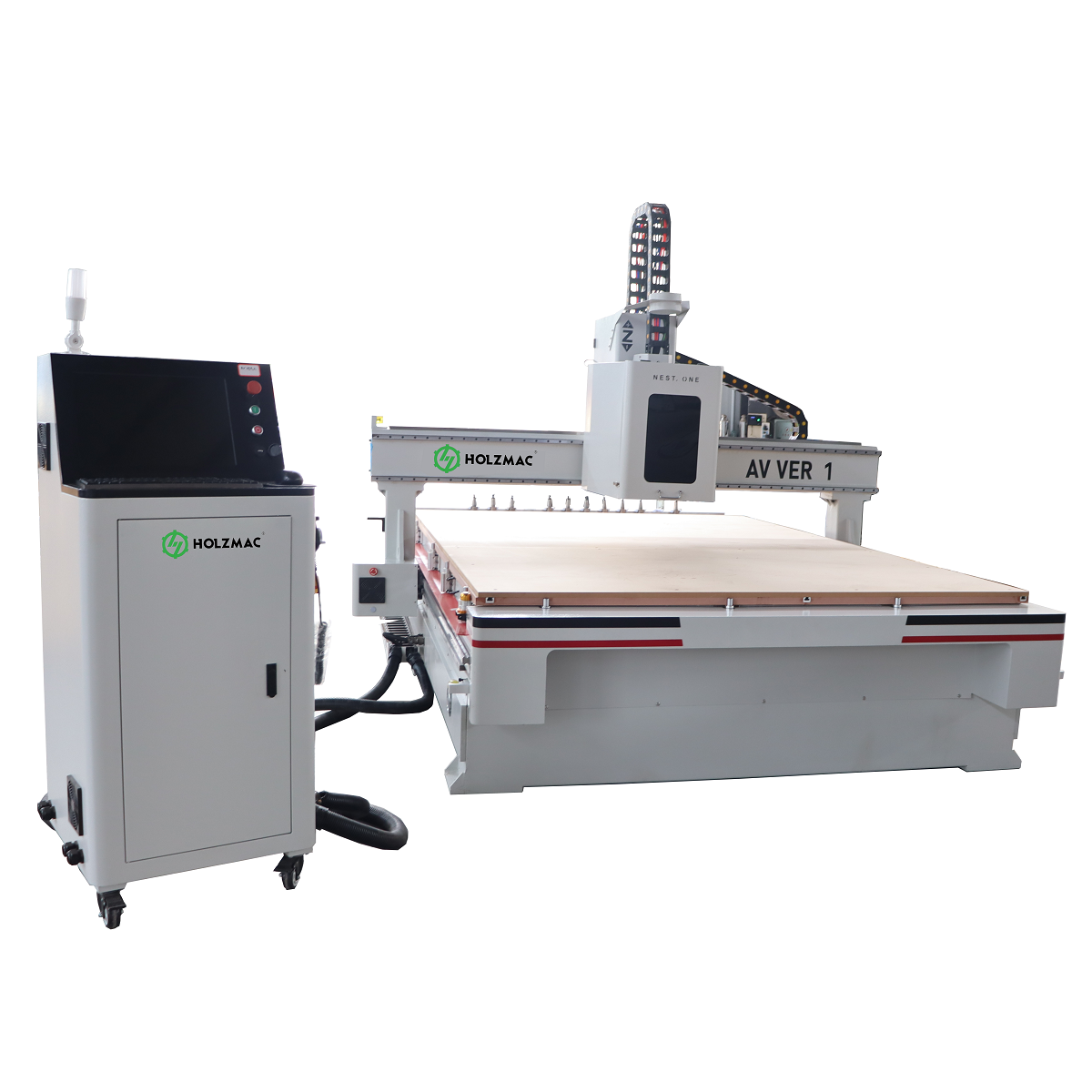

Product Description
| Model | AV VER 1 |
|---|---|
| Working table size | 2100*3050*200mm |
| Transmission | Gear & ball screw |
| Z axis movement | 25mm linear guide & ball screw |
| X axis movement | 25mm linear guide |
| Y axis movement | 30mm linear guide |
| Electrical | Chint Brand |
| Spindle | 9KW 24000rpm air cooling |
| Drive X & Y axis & Z axis | 1kw Weihong servo motor |
| Inverter | 11KW Fulin Brand |
| Table | vacuum table (6 zones) |
| Vacuum pump | 7.5KW 250cbm |
| Control system | Weihong NC 60A |
| Tool length sensor | Include |
| Position cylinder | X axis 3 pcs, Y axis 4 pcs |
| Machine Size | 4500*2500*2300mm |
| Machine Weight | 2300 KGS |
Functional Role
| Part Name | Reference Picture | Description of components |
|---|---|---|

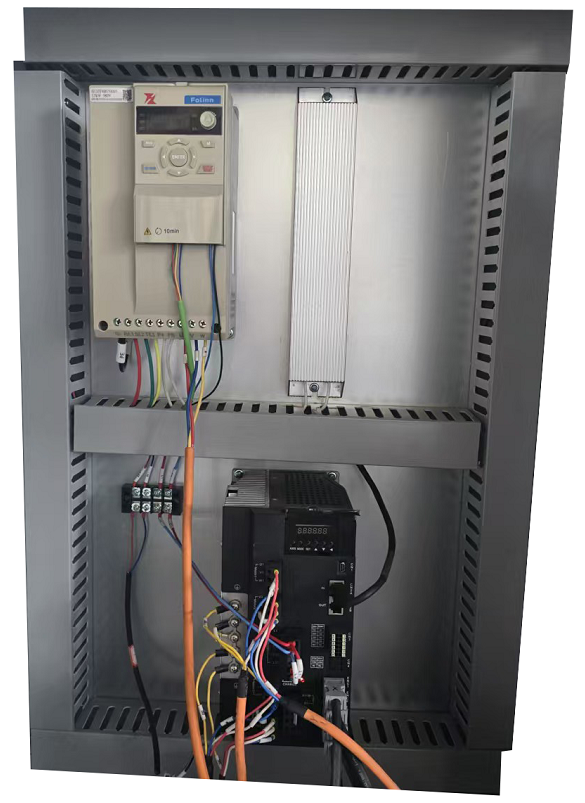

| Electrical and electric boxes |
| Brand: Schneider, France According to the European CE standards, the whole machine production, wiring, all line number identification is clear, the line is clear, random with circuit diagram, machine failure, troubleshooting inspection line is simple and convenient. |

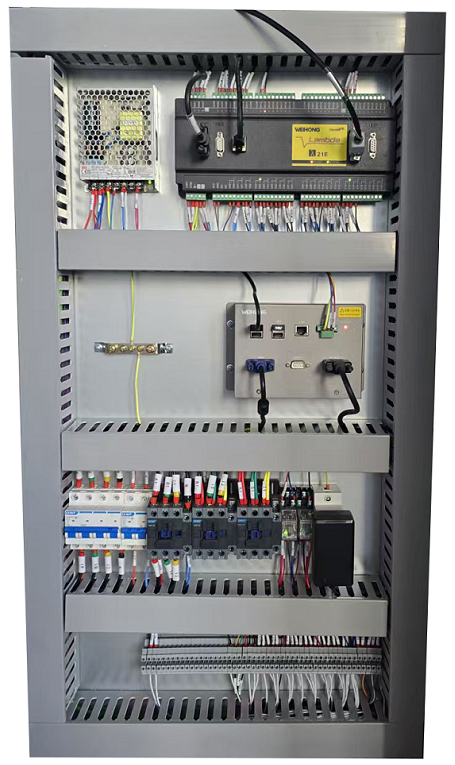

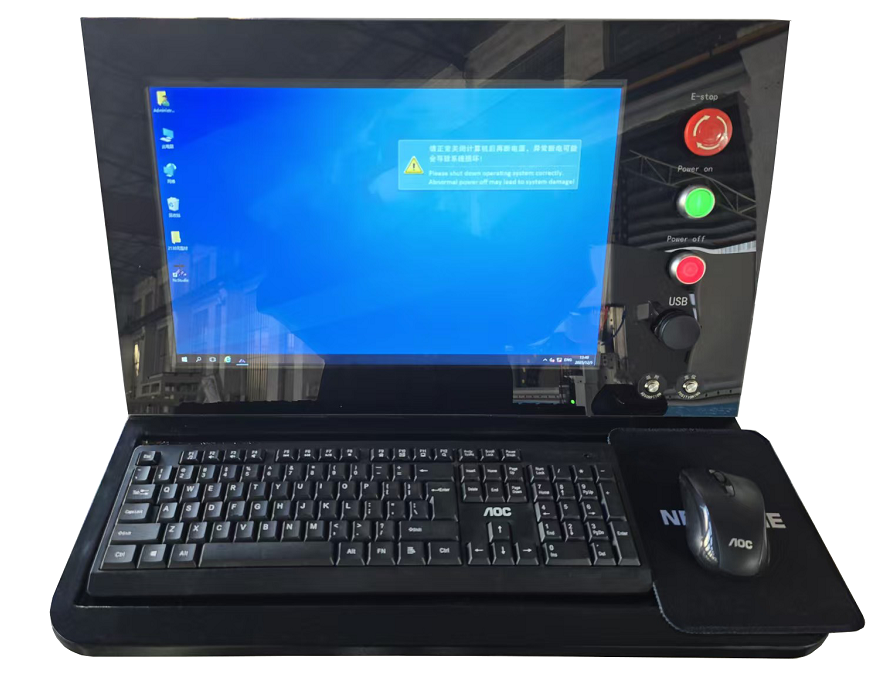

| Weihong Control system with PC and keyboard |
| A user-friendly Weihong Control system integrated with a dedicated PC and keyboard, enabling intuitive operation, program editing, and real-time processing control for woodworking CNC machines. |

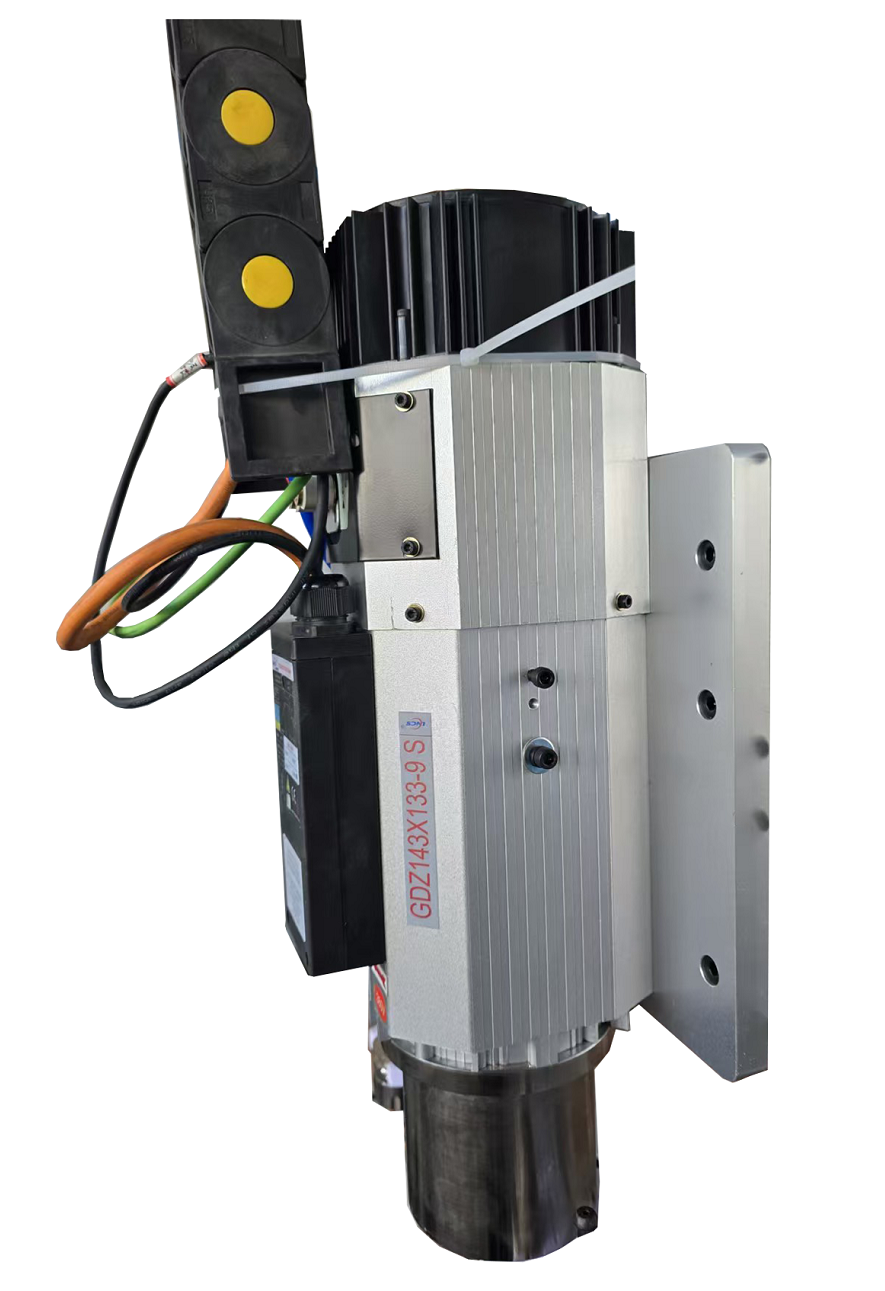

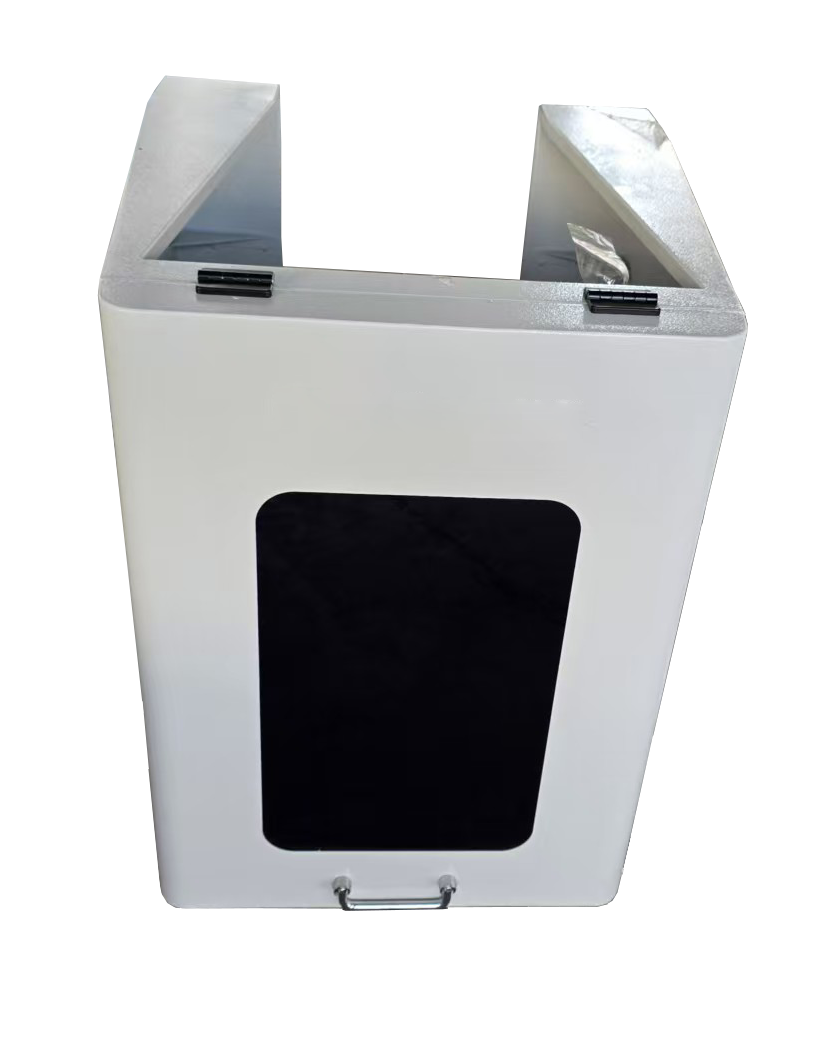

| Spindle with air blower |
| Equipped with a 9KW air-cooled spindle, it boasts a maximum speed of 24,000rpm, delivering abundant cutting force and efficient heat dissipation. This makes it ideal for various heavy-load woodworking applications such as carving, cutting, and grooving. |
| Big Spindle cover |
| It protects operators from contact with high-speed rotating components to ensure safety, and prevents wood chips and dust generated during cutting from entering the spindle interior, thereby extending the equipment's service life. |

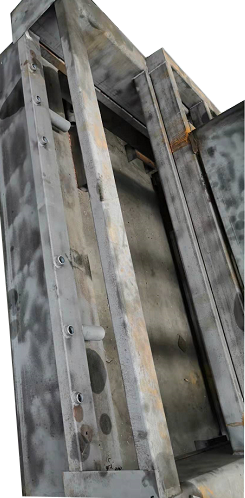

| Heavy duty Machine body |
| Our CNC router features thick steel and pipe welding with heat treatment, Machining properly with powder painting, delivering exceptional structural rigidity and long service life. |

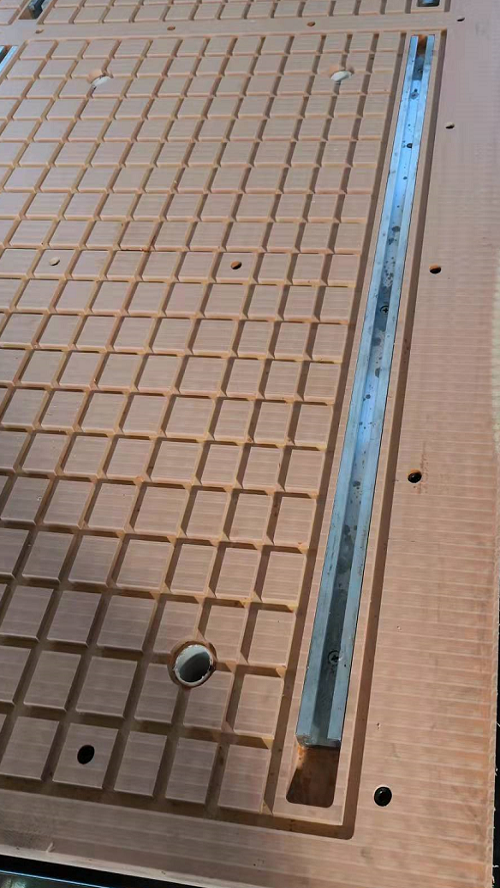

| Vacuum table with AL T-slot |
| Vacuum table with AL T-slot, which firmly fixes wood workpieces and supports flexible positioning. |

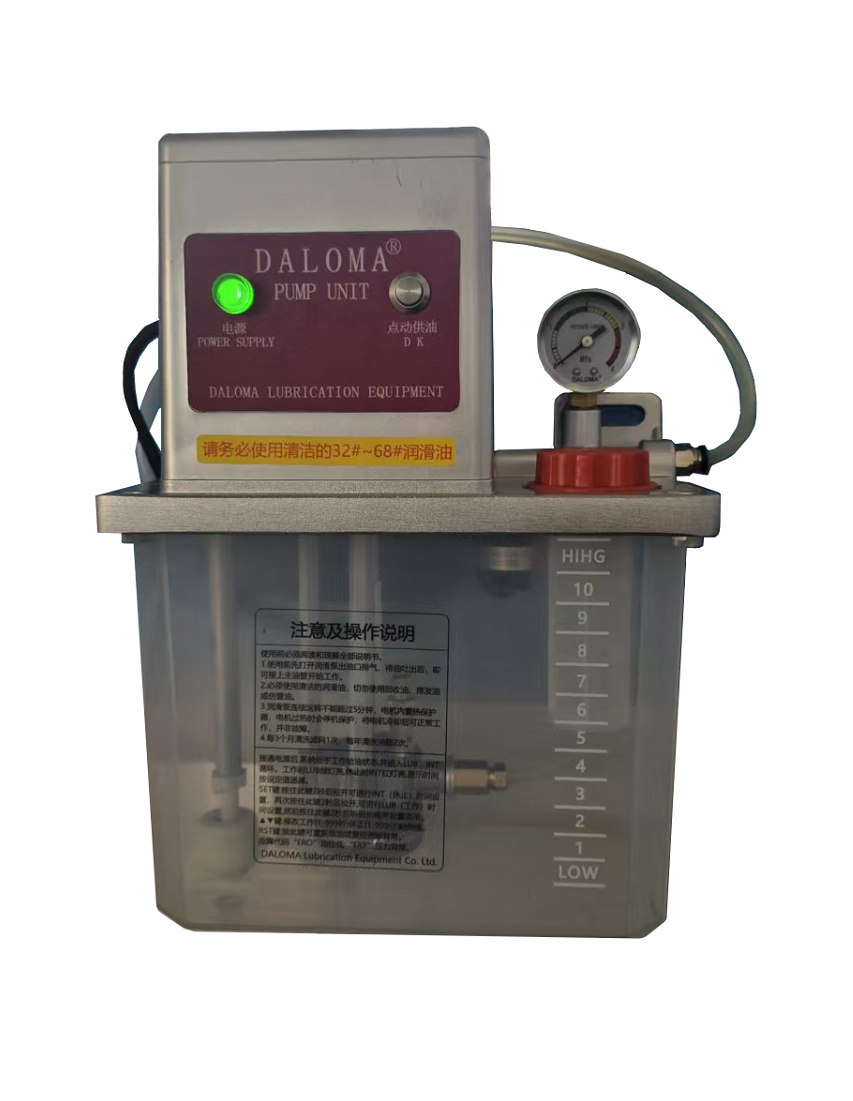

| Lubrication system |
| Equipped with a 7.5KW high-power vacuum pump (250 m³/h), it delivers strong adsorption force for the vacuum table.Automatic lubricate pump ensure lubricate on time and properly. |

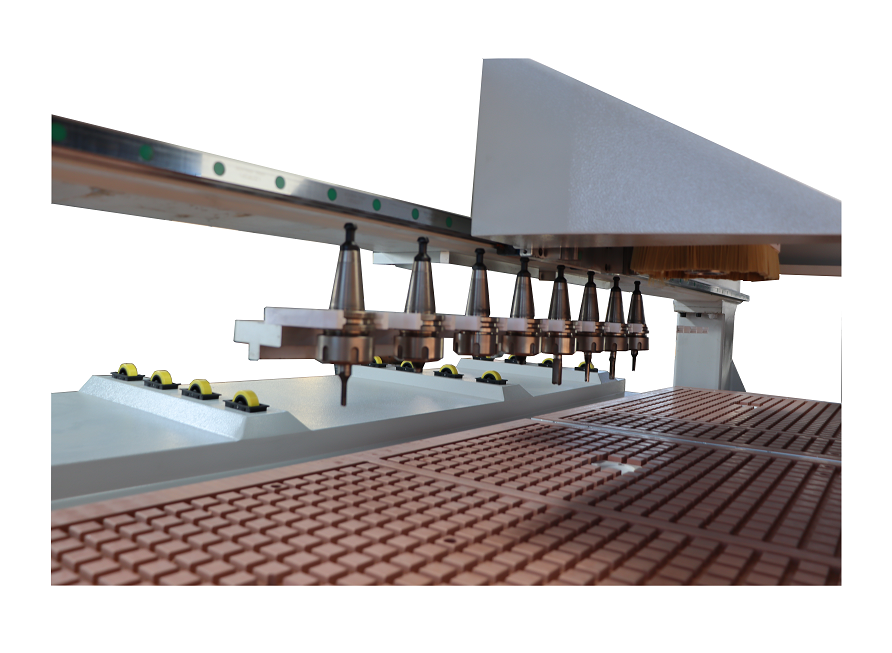

| Linear tool changer |
| The AV VER 2 is equipped with a linear tool changer featuring 12 tool stations. Boasting a simple structure, easy maintenance, and compact footprint, the tool changer arranges tools in a straight line. During tool switching, the tool rack is driven by an air cylinder or servo motor for translational positioning, ensuring direct and efficient tool change operations. |
Main Function

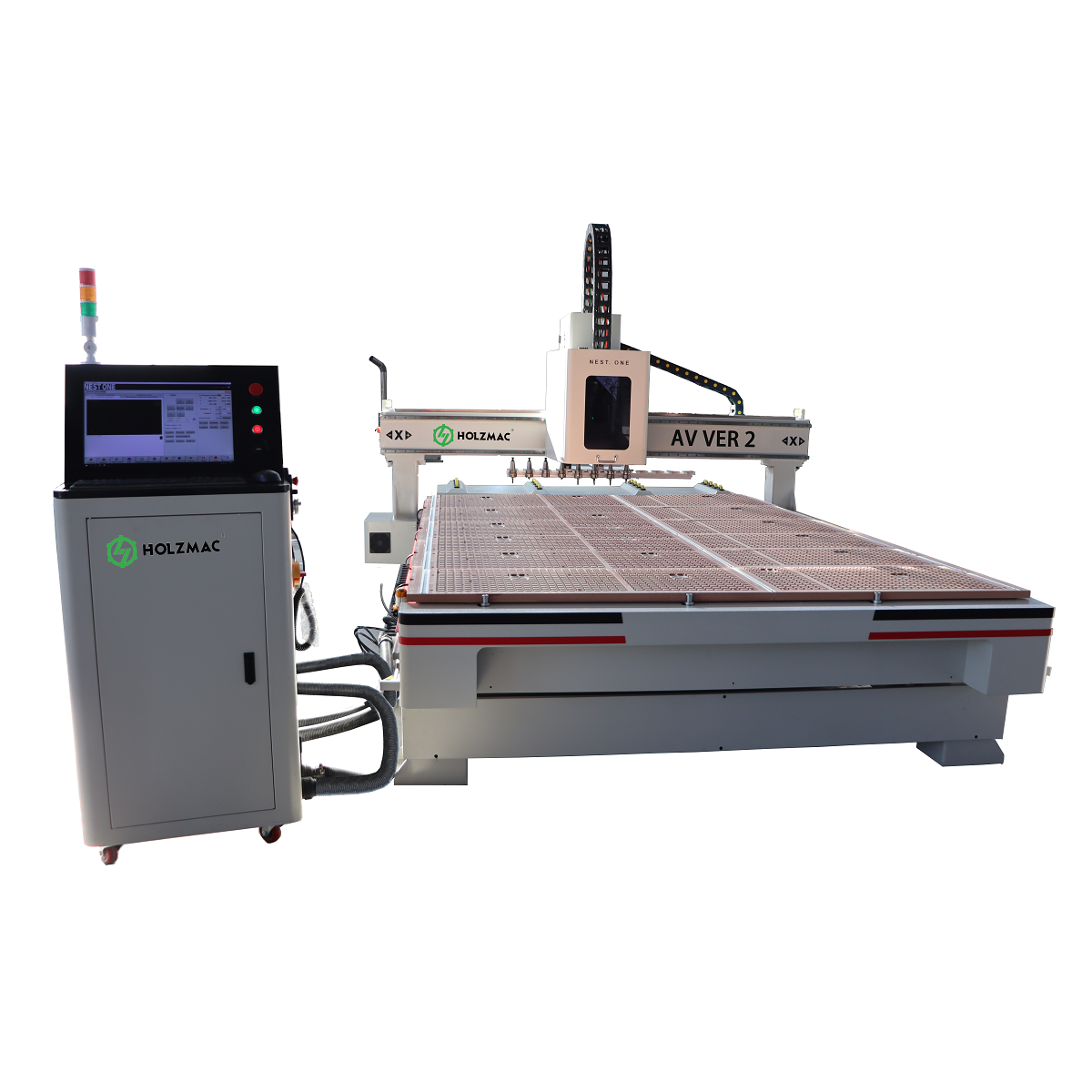

The AV VER 2 Pro CNC Router is a high-performance woodworking CNC machine, focusing on precise wood processing and efficient production. It can implement various heavy-load woodworking processes such as carving, cutting, and grooving. Supported by a vacuum adsorption table and multiple sets of positioning cylinders, it can firmly fix workpieces of different specifications. Equipped with a tool length sensor and automatic detection and compensation function, it ensures processing accuracy. Through a high-power spindle and servo drive system, it supports high-speed and stable mass production operations.
Main Features：
Powerful Configuration & Abundant Power
Equipped with a 9KW air-cooled spindle (maximum speed 24,000rpm), it delivers strong cutting force and efficient heat dissipation.
It is also fitted with a 7.5KW high-power vacuum pump (250 m³/h) and a 6-zone vacuum table, providing stable adsorption force to meet the fixing needs of various wood workpieces.
Precise Transmission & Stable Operation
Adopting a gear and ball screw transmission structure, the X/Y/Z axes are all equipped with high-precision linear guides (25mm for Z-axis, 25mm for X-axis, 30mm for Y-axis).
Paired with 1KW Weihong servo motors and an 11KW Fulin inverter, it features high transmission accuracy, smooth operation, and minimal processing errors.
Intelligent & User-Friendly Operation
Equipped with the Weihong NC 60A control system and integrated tool length sensor, it supports precise tool setting and error compensation.
The machine is furnished with 3 sets of X-axis positioning cylinders and 4 sets of Y-axis positioning cylinders, further improving workpiece positioning accuracy and reducing operational complexity.
Durable & Versatile Performance
Adopting Chint brand electrical components, it ensures reliable quality. With dimensions of 4500×2500×2300mm and a worktable size of 2100×3050×200mm (net weight 2300KG), the machine has a solid and stable structure.
It is suitable for large workpieces and mass production scenarios, with convenient maintenance.
Equipped with an extra-large worktable of 2100x3050x200mm and a 6-zone vacuum adsorption table, it can firmly fix large plates or multiple workpieces.
This design meets the needs of mass production and large-size processing, featuring strong adsorption force with zone-controlled functionality to adapt to processing scenarios of different specifications.
