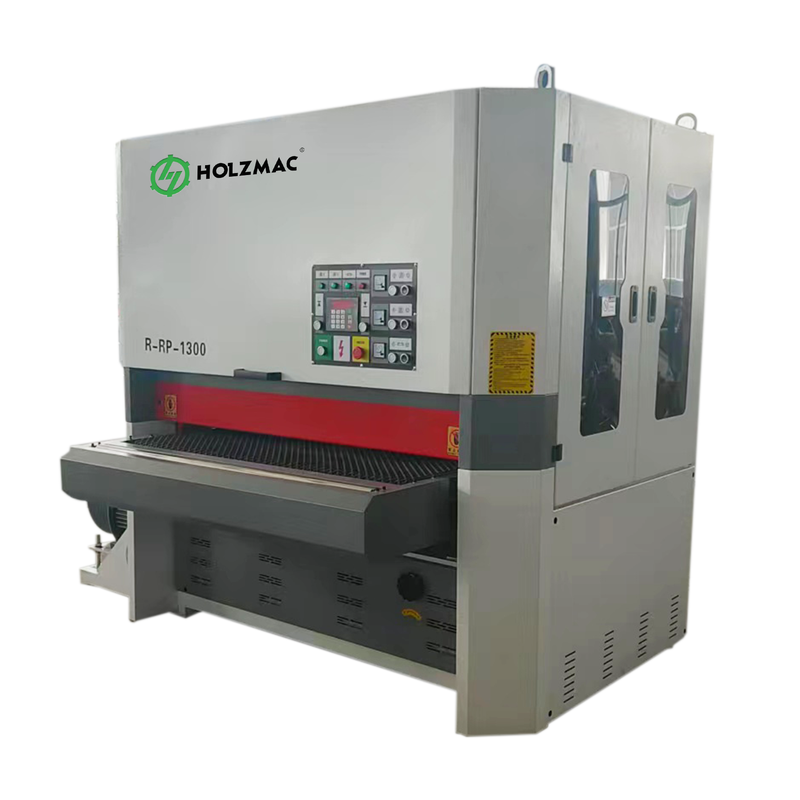

R-RP 1300 - Large Format Sanding & Polishing Machine

Large-Width Processing for Big Workpieces:Supports workpieces up to 1300mm wide, 3-110mm thick, ≥560mm long
Ultra-Powerful:30kW combination head motor + 22kW roller head motor (240/210mm heads) enable efficient surface treatment of large workpieces for heavy loads
Highly Adaptive Feeding:2-28m/min adjustable speed (4kW motor)
Easy Operation & Stable Structure:Built-in 0.55kW table lifting motor (flexible adjustment); 1940×2200×2100mm, 2900kg (sturdy build)

Availability:
Quantity:
Inquire Add to Basket

Specification

ModelR-RP 1300
Maximum working width1300mm
Working thickness3—110mm
Working length≥560mm
Combination head motor30kw
Roller head motor22KW
Combination head dia240mm
Roller head dia210mm
Feeding motor4kw
Feeding speed2--28m/min
Table raising motor0.55kw-RV40
Pneumatic pressure0.6 Mpa
Sanding belt size2200*1320mm
Dimension1940*2200*2100mm
Weight2900kg
