Product Description
Single drilling package CNC hexa drill
Center SKZ-612

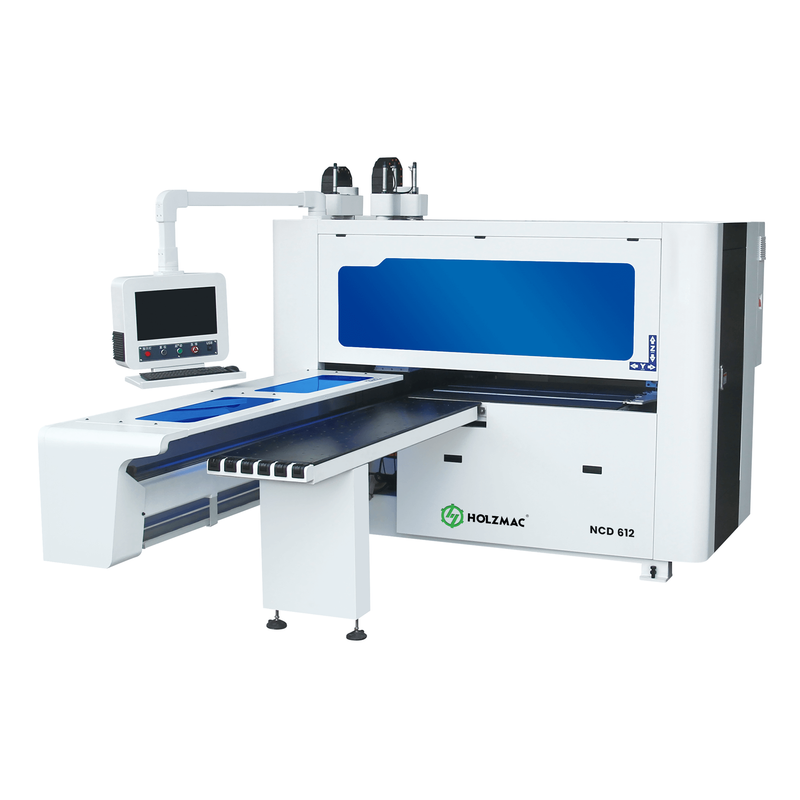

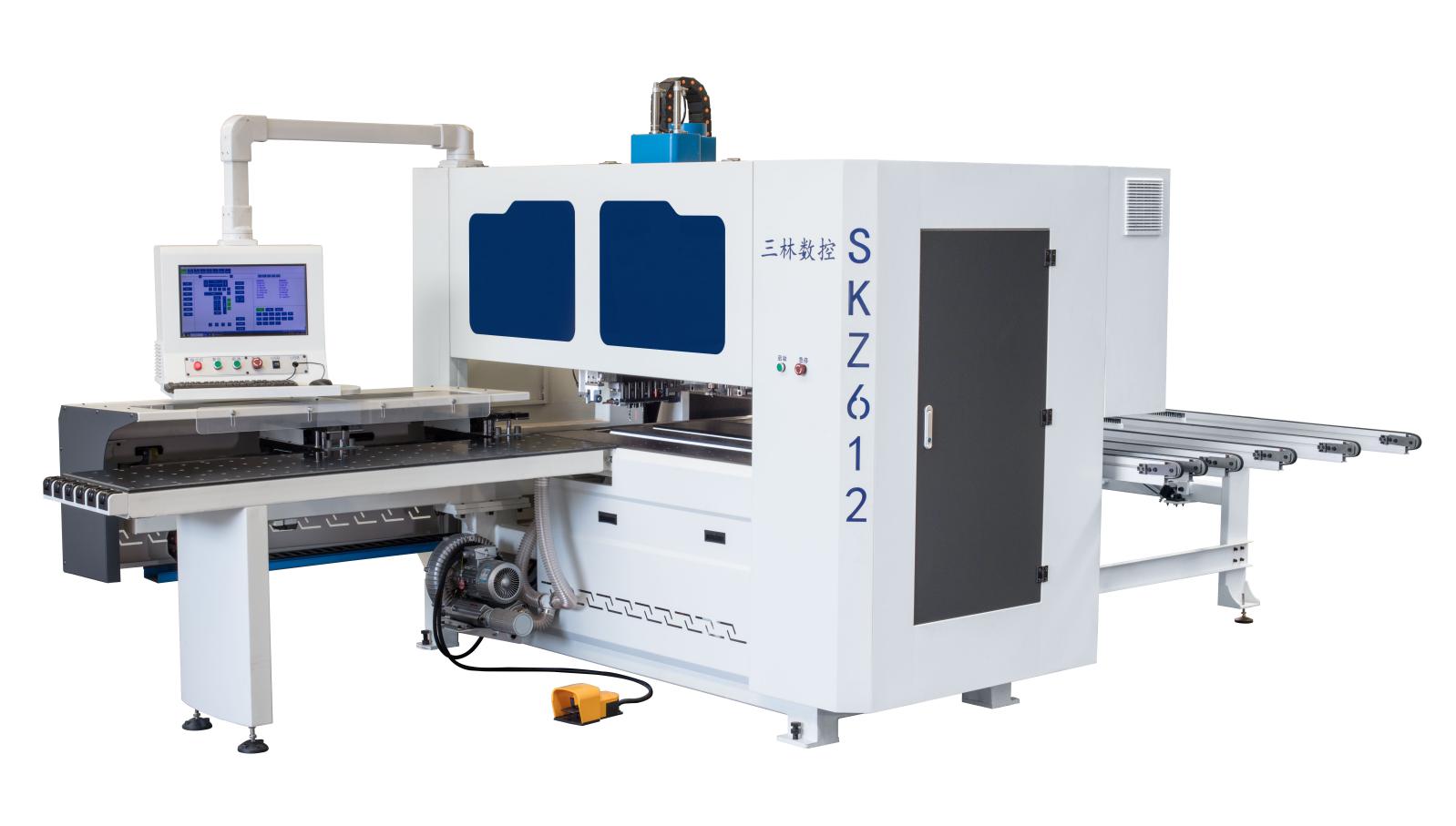

Machine picture （ for reference only）
main technical parameters
NO | Specifications | Technical parameter |
1. | Processing wood length | 150mm~3050mm |
2. | Processing wood width | 40mm~1200mm |
3. | Processing wood thickness | 10mm~60mm |
4. | Max moving speed of x-axis | 150m/min |
5. | Max moving speed of Y-axis | 100m/min |
6. | Max moving speed of Z-axis | 30m/min |
7. | Drill group vertical driling | 9支 |
8. | Drill group horizontal driling | 8支 |
9. | Drill down vertically | 9支 |
10. | Drill group power | 2.2KW×2 |
11. | Lou milling spindle mode | Er3 |
12. | Lou milling speed | 18000r/min |
13. | Lou milling spindle power | 3.5kw×2 |
14. | Workbench height | 900mm |
15. | Lord enters the diameter of the suction pipe | 125mm |
16. | Total power | 19.8kw |
17. | Operating voltage | 380V 50HZ |
18. | Working pressure | 0.6-0.8Mpa |
19. | weiht | 3500Kg |
20. | Dimensions | 5000mm×2750mm×2300mm |
Main configuration
Configuration Name | Brand Name |
System | Germany |
Servo Motor | Huichuan |
Electrical appliances | France Schneider |
Planetary reducer | Taiwan World Association |
Linear guide rail slider | Bank of Taiwan |
Ball wire rod | TBI Taiwan |
Gear rack | Germany |
Drill kits | Proteam |
Functional role
Part Name | Reference Picture | Description of components |

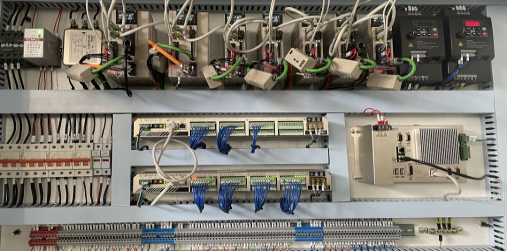

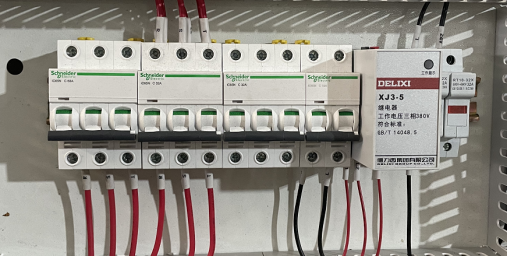

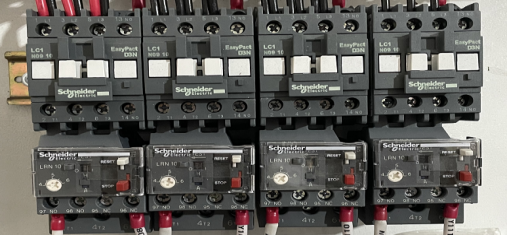

Electrical and electric boxes |
| Brand: Schneider, France According to the European CE standards, the whole machine production, wiring, all line number identification is clear, the line is clear, random with circuit diagram, machine failure, troubleshooting inspection line is simple and convenient. |

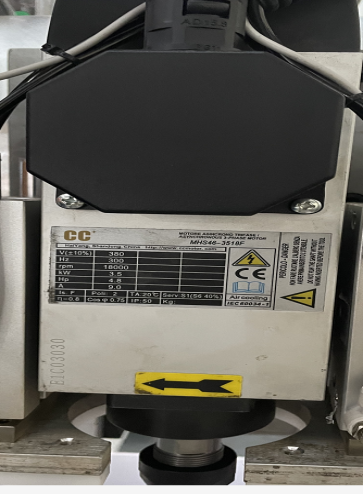

Main spindle |
| Brand: Changchuan 3.5 KW Air-cooled high-speed spindle 2, speed 18000 rpm/min; |
Guide rail and slider |
| Brand: Taiwan Shangyin 防尘性能好，精度高，重负荷且使用寿命长。 Good dustproof performance, high precision, heavy load and long service life. |

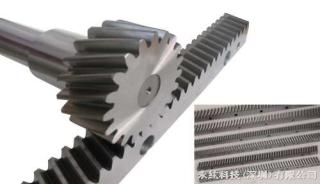

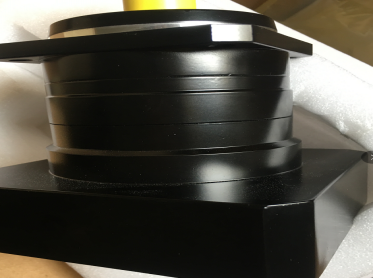

Transmission |
| Special custom imported high precision 2 M helical bar, imported high precision reducer, large and stable transmission force, Z shaft using ball wire rod transmission. |

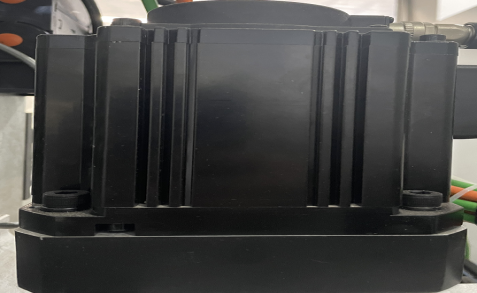

Drive and Motor |
| Brand ：Huichuan Low noise and high speed torque. Built-in precision bearing, large torsion, long working time, high resolution and accurate positioning. |

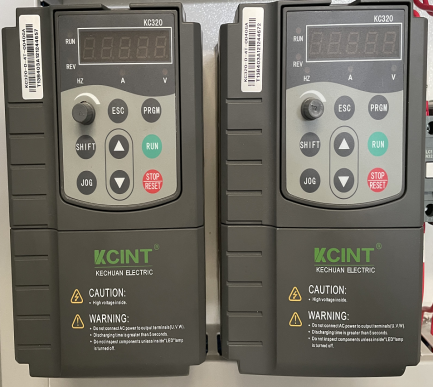

Frequency converter | | The low frequency output torque is large, the motor operation noise is small, the operation balance, the speed precision is high. |

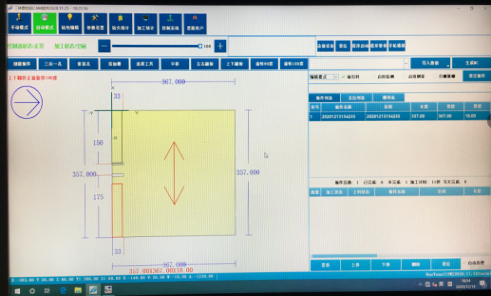

Control software |
| Brand：Germany The man-machine interface is friendly, easy to operate, scientific system algorithm and fast response time. |

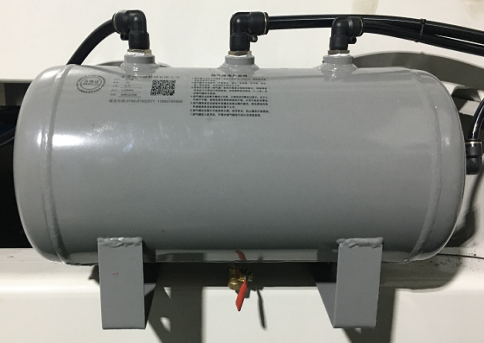

Gas storage tanks |
| High-end machines are equipped with gas cylinders to ensure stable air pressure, in case the machine pressure instability caused by the normal operation of the equipment, so that the equipment work more stable. |

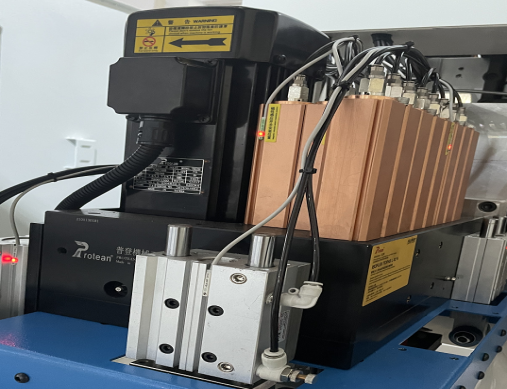

Drill kits |
| Brand: Proteam |

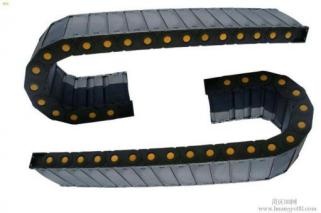

Trailer chain |
| Adopt high flexible cable towing chain, excellent dustproof, anticorrosion, anti-static performance, support 150 degree bending, effectively protect cable. |

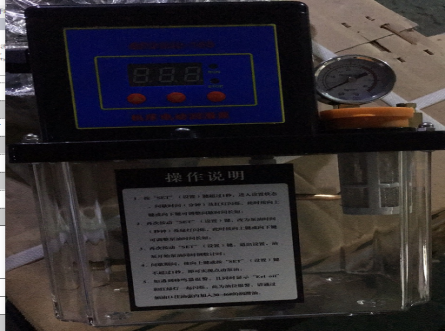

Lubricating system |
| Lubrication, maintain mechanical accuracy and mechanical service life. |
Main Use
The NCD 612 High-Precision Boring Machine is a high-precision and versatile solution designed for professional woodworking. It is suitable for drilling installation holes in a wide range of applications, including cabinets, closets, office furniture, and more. This machine offers exceptional accuracy, efficiency, and flexibility, making it an essential tool in any professional workshop.
High-Precision Drilling:
The NCD 612 is designed to drill precise and accurate installation holes, ensuring that every piece of furniture or cabinetry is assembled with the highest quality.
Single-Row Horizontal and Vertical Drilling: For basic drilling needs, you can choose single-row horizontal and vertical drilling, providing flexibility for various hole placements.
Double-Head Drilling: The double-head configuration allows for simultaneous horizontal and vertical drilling, significantly increasing productivity and reducing setup time.
Three-Row Drilling and Automatic Feeding: For batch work, the three-row drilling option, combined with automatic feeding, ensures consistent and efficient drilling, ideal for high-volume production.
CNC Six-Side Drilling: The advanced CNC six-side drilling feature enables high-efficiency and automatic processing of holes or grooves on all six sides of the workpiece simultaneously, providing unparalleled precision and speed.
High-Precision Drilling:
The NCD 612 is equipped with high-precision components and advanced technology, ensuring that each hole is drilled with extreme accuracy and consistency.
The robust construction and stable design minimize vibration, resulting in clean and precise holes.
Versatile Drilling Options:
Single-Row Drilling: Suitable for simple and straightforward drilling tasks, offering flexibility in hole placement.
Double-Head Drilling: Simultaneously drills both horizontal and vertical holes, ideal for complex and multi-hole requirements.
Three-Row Drilling and Automatic Feeding: Perfect for batch work, this feature allows for continuous and efficient drilling, reducing manual labor and increasing throughput.
CNC Six-Side Drilling: The CNC control system provides high-precision and automated drilling on all six sides of the workpiece, making it ideal for intricate and detailed work.
Efficient and Reliable:
The NCD 612 is designed to be highly efficient, with fast and accurate drilling capabilities, reducing overall production time.
The durable construction and reliable components ensure long-term performance and minimal downtime.
User-Friendly Design:
The intuitive control panel and user-friendly interface make the NCD 612 easy to operate, even for users with varying levels of experience.
Integrated safety features protect the operator and ensure a secure working environment.
Customizable and Scalable:
The machine can be configured to meet specific capacity demands, allowing you to choose the most suitable drilling options for your projects.
The flexible design and modular components make it easy to upgrade or modify the machine as your production needs evolve.
Precision and Accuracy: The NCD 612 delivers high-precision drilling, ensuring that every hole is accurately placed and perfectly formed.
Versatility: With multiple drilling options, the machine can handle a wide range of drilling tasks, from simple to complex.
Efficiency: Advanced features such as CNC six-side drilling and automatic feeding increase productivity and reduce labor costs.
Reliability: Durable construction and high-quality components ensure long-lasting and reliable operation.
Ease of Use: The intuitive control system and ergonomic design make the NCD 612 easy to use and maintain.
The NCD 612 High-Precision Boring Machine is a versatile and high-performance solution, combining powerful drilling capabilities, advanced precision, and user-friendly design. It is the perfect choice for professionals looking to achieve high-precision and efficient drilling in their woodworking projects, whether it's for cabinets, closets, office furniture, or other applications.
