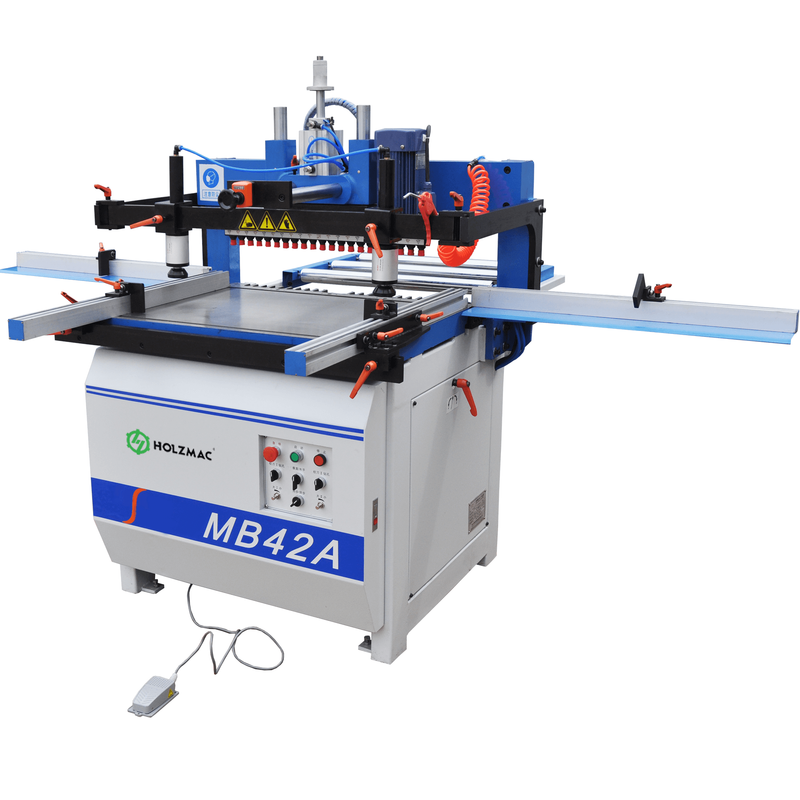

The MB42A Double Head Boring Machine is a high-performance solution designed for efficient and accurate woodworking. Equipped with 42 spindles and two 1.5KW main motors, it provides fast and precise drilling. The machine supports a maximum drill diameter of 35mm (single drill) or 13mm (multi-drill), making it versatile for various applications. The pneumatic power of 0.6Mpa ensures stable and consistent operation, while the 2840rpm spindle speed enhances performance. With dimensions of 1250×1050×1600mm and weighing 450kg, this machine is robust yet compact enough to fit into most workshops. Ideal for production lines, the MB42A improves efficiency and accuracy in drilling operations, making it a valuable asset for any woodworking facility.
| Quantity: | |
|---|---|
Product Description
Model | MB42A (Double head) |
Spindle No. | 42 bits |
Spindle distance | 32mm |
Max. drilling depth | 60mm |
Maximum drill diameter | 35mm (single drill)/13mm (multi drill) |
Main motor power | 1.5KW×2 |
Spindle speed | 2840rpm |
Pneumatic power | 0.6Mpa |
Packing size | 1250×1050×1600mm |
Net weight | 450kg |
Main Use
The MB42A Double Head Boring Machine is a high-capacity drilling solution designed to meet the demanding needs of cabinet, closet, and office furniture manufacturing. This versatile machine is suitable for a wide range of applications, ensuring efficient and precise drilling for installation holes.
Suitable for All Types of Furniture:
The MB42A Double Head Boring Machine is ideal for cabinets, closets, office furniture, and more, providing the flexibility to handle various materials and sizes.
It is specifically designed to drill out the installation holes required for these applications, ensuring a perfect fit and finish.
Customizable Drilling Configurations:
Single-Row Horizontal and Vertical Drilling: For basic drilling needs, you can choose single-row horizontal and vertical drilling configurations.
Double-Head Drilling: The double-head option allows for simultaneous horizontal and vertical hole drilling, significantly increasing productivity and reducing cycle times.
Three Rows and Automatic Feeding: For high-volume production, the three-row configuration with automatic feeding is available. This setup enables batch work and continuous processing, making it ideal for large-scale manufacturing.
CNC Six-Side Drilling: For the highest efficiency, the CNC six-side drilling feature allows for the automatic processing of holes or grooves on all six sides of the workpiece simultaneously. This advanced capability ensures high-speed and high-precision drilling, saving time and labor.
High Capacity and Efficiency:
The MB42A Double Head Boring Machine is designed to handle high-capacity demands, making it a reliable choice for busy workshops and production lines.
With its ability to perform multiple drilling operations in a single setup, this machine maximizes productivity and minimizes downtime.
Precision and Reliability:
The machine is built with high-quality components and advanced technology, ensuring precision and reliability in every drilling operation.
Whether you are working on intricate designs or standard production, the MB42A Double Head Boring Machine delivers consistent and accurate results.
Advanced Features:
Automatic Tool Changer: (If applicable) An optional automatic tool changer can be added to further enhance productivity by minimizing tool changeover times.
User-Friendly Interface: The machine comes with an intuitive control system, making it easy to program and operate, even for users with varying levels of experience.
Safety Features: Integrated safety features ensure a secure and accident-free working environment, protecting both the operator and the equipment.
The MB42A Double Head Boring Machine is a robust and versatile solution, combining high capacity, precision, and efficiency to meet the diverse needs of modern furniture manufacturing. Whether you are a small workshop or a large-scale manufacturer, this machine is a valuable addition to your production line, providing the flexibility and performance needed to excel in your industry.
